Mosquito Magnet® Commercial Pro
Pro Housing Breakdown
Trumpet and Plume Tube

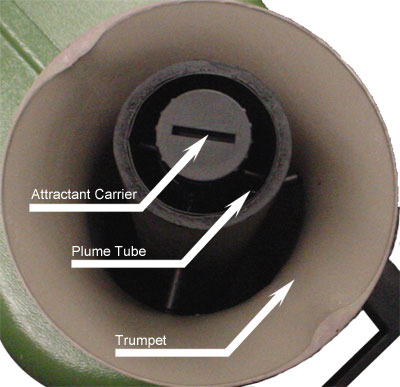

This image shows the three main parts under the Pro housing.
-
Attractant Carrier - This is where you would put the added attractant that comes with the Pro.
- Plume Tube - When the CO2 is forced out of the CO2 output tube on the power pack, and flows through the CO2 tube in the Pro housing it then comes out the plume tube. As the CO2 flows past the Attractant Carrier, there are air holes on the attractant carrier that allow the CO2 to flow through and pick up the attractant as it flows out of the plume tube.
- Trumpet - You can feel the vacuum where the mosquitoes are drawn into and vacuumed to the net. This is where you would perform the tissue test to check the vacuum. Using a small piece of tissue, around the size of a dime. Hold the tissue under and about a half inch into the trumpet and let it go. The piece of tissue should be pulled into the net. If it does not, check our troubleshooting steps for this issue.
